Tissue Engineering



From 3D culture models to regenerative surgery

The common denominator of the research projects in the group is related to the establishment of 3D cell culture systems, combining interdisciplinary efforts in cell biology, engineering technologies and materials science. These systems are used as models to investigate fundamental aspects of tissue development/pathologic changes, or as grafts to induce tissue regeneration. Our main focus is the development of cartilage and bone/bone marrow tissues, though the developed expertise has also been implemented in collaboration with other groups in different areas, including tumor modelling.

Cartilage tissue engineering and regeneration (Collaboration with Group “Cartilage Engineering”, Prof. A. Barbero)

Our goal is to repair cartilage defects of traumatic or degenerative nature using grafts engineered from autologous cells. We discovered that nasal chondrocytes (NC) have a larger and more reproducible capacity for cartilage regeneration as compared to other cell types, including articular chondrocytes. Moreover, NC display features of environmental plasticity and can thus genetically and functionally adapt to implantation in a joint. Our concept has been translated into a first-in-man study for the treatment of focal cartilage defects in the knee (Fig.1). Based on the promising findings, we are now coordinating a multicenter phase II trial (Bio-Chip) for the same indications, funded under the EU-Horizon2020 program. In parallel, with the goal to treat also degenerative cartilage diseases (e.g., osteoarthritis), we are currently investigating the capacity of NC to regulate the main pathological processes activated in a joint by inflammation and abnormal loading. In the framework of an ERC Synergy project (collab. with F. Rijli, FMI), we target understanding the molecular and epigenetic mechanisms endowing NC with their distinct functionalities.

Vascularized bone and bone marrow engineering (Collaboration with Group “Bone Regeneration”, Prof. A. Scherberich)

One goal of the program is the controlled development of bone / bone marrow ossicles using human cells, as models for human hematopoiesis and as grafts for bone regeneration. We demonstrated that mesenchymal progenitors from human bone marrow or adipose tissue can recapitulate the developmental process of endochondral ossification. This involves the formation of cartilaginous intermediate tissues which robustly and efficiently remodel into functional ossicles upon implantation. The system was used to investigate interactions between stromal and hematopoietic cell components (collab. with T. Schroeder, D-BSSE) and to generate osteoinductive extracellular matrices (collab. with P. Bourgine, Univ. Lund).

An associated goal is the efficient vascularization of the implanted grafts to support scaled up bone regeneration. We found that axial vascularization of engineered implants with an arterio-venous (AV) bundle leads to a rapid formation of vascular networks (Figure 2). This principle was used to reconstruct maxillary bone in a patient following carcinoma excision. The bone defect was satisfactorily restored by ectopic prefabrication of a vascularized bone graft using autologous fat-derived cells and an AV bundle, which was transferred into the defect site. Studies are ongoing to adapt and evolve the paradigm for use in the challenging clinical settings of infected bone.

Engineering platforms for 3D cell culture

Dynamic 3D cell culture under perfusion flow (Figure 3A) has been introduced to model in vitro tissue development and physiological homeostatic processes (e.g., bone matrix deposition and resorption, stromal-vascular-hematopoietic cell interactions) as well as pathologic settings (e.g., cartilage degeneration, hematologic malignancies) (collab with R. Skoda, C. Lengerke, S. Meyer). The developed tools are also being employed for 3D culture of tumor cells, through collaborations established within the DBM, with the Institute of Pathology, and with the D-BSSE (M. Bentires-Aji, G. Hutter, C. Le Magnen, Y. Benenson). Generated models have shown patterns of response to drugs or immunotherapy which cannot be mimicked by 2D cultures or by simple spheroids.

The bioreactor-based culture tools are being further developed (i) to introduce automation/control towards streamlined manufacturing of clinical grafts (Figure 3B) or (ii) to increase throughput for larger scale tests in miniaturized compartments (Figure 3C).





Connection to clinical practice


Prof. C. Kunz, PD Dr. M. Mumme & Prof. A.M. Müller, Prof. D.J. Schaefer, Prof. S. Schaeren

Maxillofacial Surgery - Orthopaedics and Traumatology - Plastic, Reconstructive, Aesthetic and Hand Surgery - Spinal Surgery

Engineered cellular grafts for regenerative surgery

Facial and tracheal cartilage reconstruction.

Engineered nasal cartilage grafts, previously successfully used for reconstruction of the alar lobule of the nose, are being investigated for the reconstruction of the nasal cartilage septum after perforation (M. Haug, B.G. Kaiser). Studies are ongoing to explore the use of epithelialized cartilage grafts for the management of empty nose syndromes (S. Negoias) and/or tracheal defects (D. Lardinois)

Articular cartilage and intervertebral disc repair.

Following the demonstration of feasibility and safety of nasal chondrocyte-based engineered cartilage for the treatment of knee cartilage injuries, a phase II study (total of 108 patients in 5 international centers) is ongoing to investigate efficacy (M. Mumme). Work is in progress to obtain regulatory approval (temporary authorization) and funding for the treatment of an extended set of orthopaedic indications using engineered nasal cartilage (M. Mumme). Pre-clinical studies are also exploring the use of nasal chondrocytes to engraft in intervertebral discs and block their degeneration (A. Mehrkens).

Bone repair

Treatment of humerus fractures in elderly individuals previously indicated the safety and biological functionality of stromal vascular fraction (SVF) cells intraoperatively derived from autologous adipose tissue. Grafts based on SVF cells are currently being investigated for axially-vascularized bone graft prefabrication in the reconstruction of the maxilla (C. Jaquiery, T. Ismail, A. Haumer, F. Thieringer), for congenital digit defects (A. Kämpfen) and for infected long bone defects (R. Osinga, M. Clauss, M. Morgenstern).



Figure 1

Figure 1: Engineering of autologous nasal cartilage grafts. (A) Collection of a nasal cartilage biopsy from a patient, under local anesthesia and with minimal donor site morbidity. (B) Collected specimen of nasal cartilage septum, from which cells are isolated and expanded in culture. (C) Tissue engineered cartilage graft (macroscopic appearance) inserted in the knee cartilage defect of the patient following intraoperative shaping (D).

Figure 2

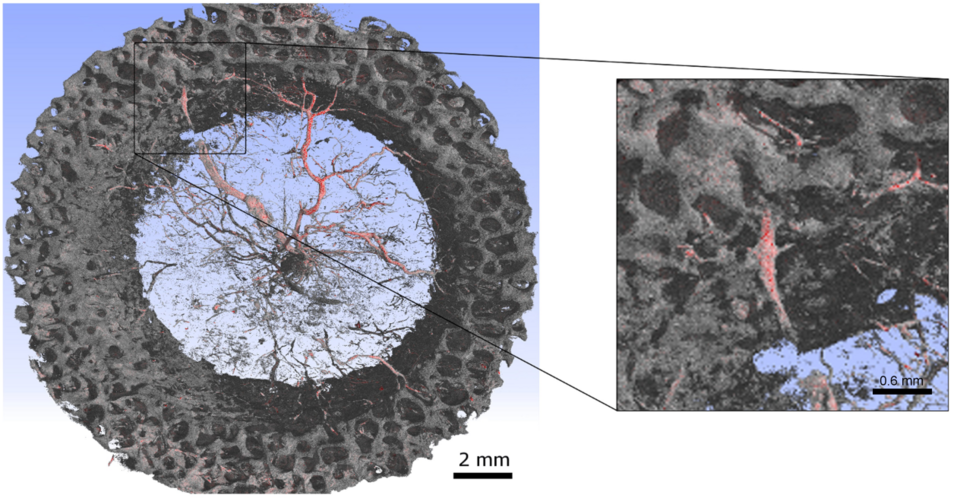

Figure 2: Phosphotungstic acid-enhanced, three-dimensional micro-computed tomography reconstruction (left picture), showing ramified, radial vascularization (red staining) of an engineered osteogenic implant developing from an arterio-venous (AV) bundle (in the very center of the construct), after 8 weeks in vivo. The implant was initially inserted inside a hollow cylinder of devitalized bone (structure in grey) mimicking osteonecrosis. This dead material is also colonized by vascular structures (magnified picture in the right).

Figure 3

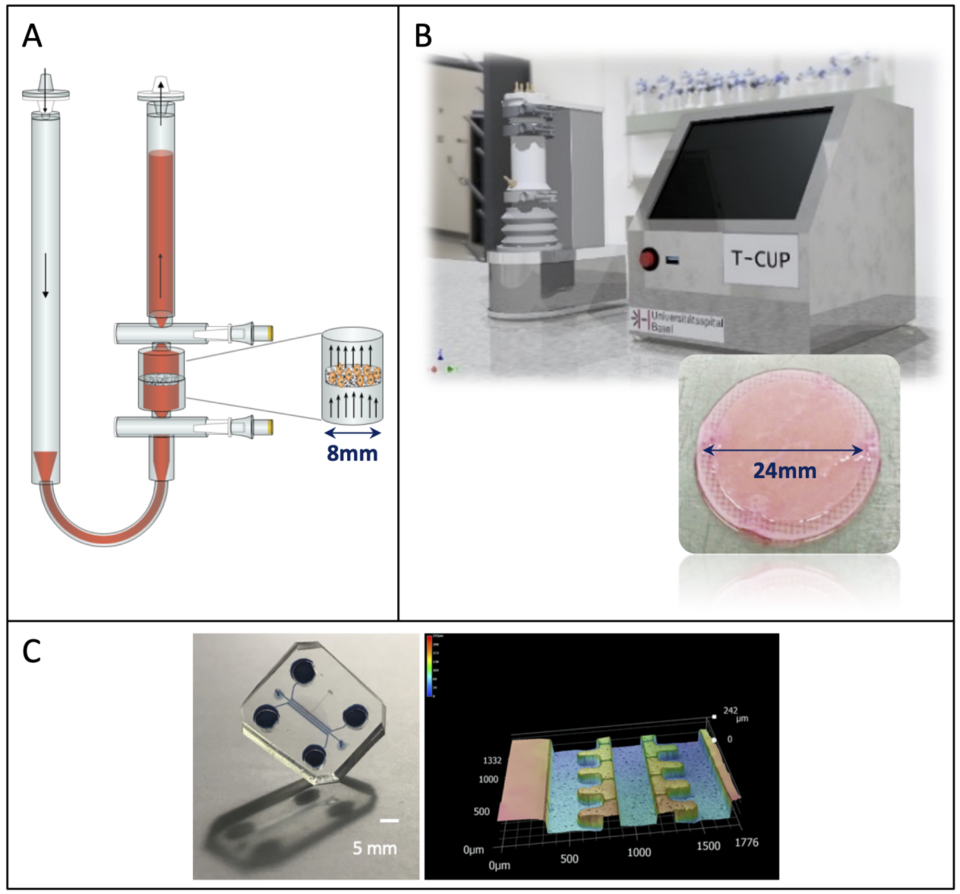

Figure 3: (A) Direct perfusion system for efficient cell seeding and culture into 3D porous scaffolds to model in vitro tissue development and mimic physiological homeostatic processes or pathological settings. (B) Bioreactor‐based system with automation and monitoring/control features for the clinical manufacturing of cartilage grafts. (C) Microfluidic-based system for dynamic loading of chondrocyte cultures, modelling traits of osteoarthritis, and testing possible therapeutic effects of soluble compounds.
